Welcome to the future of modern access

Uhlmann & Zacher is one of the fastest growing supplier of electronic locking systems in Germany.

More than 130 employees contribute towards making true our claim of always being one step ahead of the market. The innovative products of U&Z are originally „Made in Germany“ and meet the highest standards. More than 1,000,000 electronic locking units are already being used.

In order to meet the individual requirements, Uhlmann & Zacher also offers products tailored to the US-market.



Uhlmann & Zacher image flyer

Products

With its minimalist and stable stainless steel design, the Electronic Door Handles manufactured by Uhlmann & Zacher adapt discretely to the architecture of existing buildings and new buildings. The combination with various functional and appealing handle shapes allows an additional level of customisation.

The Online Module BLE establishes connection between the electronic locking units and the management software of the access control system.

All products work with the Bluetooth® Low Energy technology.

Mortise Lock CX8176 / CX2176

Mortise Locks are widely used in commercial constructions, for example in industrial buildings. Mechanical units can be replaced easily and quickly by a modern electronic locking unit manufactured by Uhlmann & Zacher.



Download:

Clex public Data Sheet

Clex prime Data Sheet

Clex private Data Sheet

Bored Latch Lock CX8178 / CX2178

Cylindrical locks, on the other hand, are commonly used in private homes and small businesses like medical practices and law firms. Here, the existing mechanical lock can even be replaced in a few simple steps: After dismantling of the old handle, the electronic door handle is inserted into the door and the mechanical or electronic handle is inserted from the other side. After locking the battery compartment, the electronic door handle is ready to be programmed.



Download:

Clex public Data Sheet

Clex prime Data Sheet

Clex private Data Sheet

Online Module BLE CX8936

The Clex online module BLE in the Clex public online system is the interface (Bluetooth® Low Energy) between the Uhlmann & Zacher products and an external system.

The online module BLE works like a „gateway“ which sends the relevant commands from the online module to the access control system and vice versa.

Different protocols (UZ Reader Protocol / RS485, OSDP V2 / RS485, Wiegand) are supported.

In the version as an access point, connection is established between the locking units and the Uhlmann & Zacher software (Keyvi). In this manner, permissions can be granted and changed, as well as incidents and the opening of the locking units can be communicated online by pressing a button from the Keyvi software.



Our Clex public data sheet for the Online Module BLE can be found here.

Solutions

Each building has its special requirements for the locking system. Thus, it is important to find a flexible system that allows a smooth sequence of electronic access control for all the involved parties. For this purpose Uhlmann & Zacher offers the following systems:

  • Clex public
  • Clex private
  • Clex prime

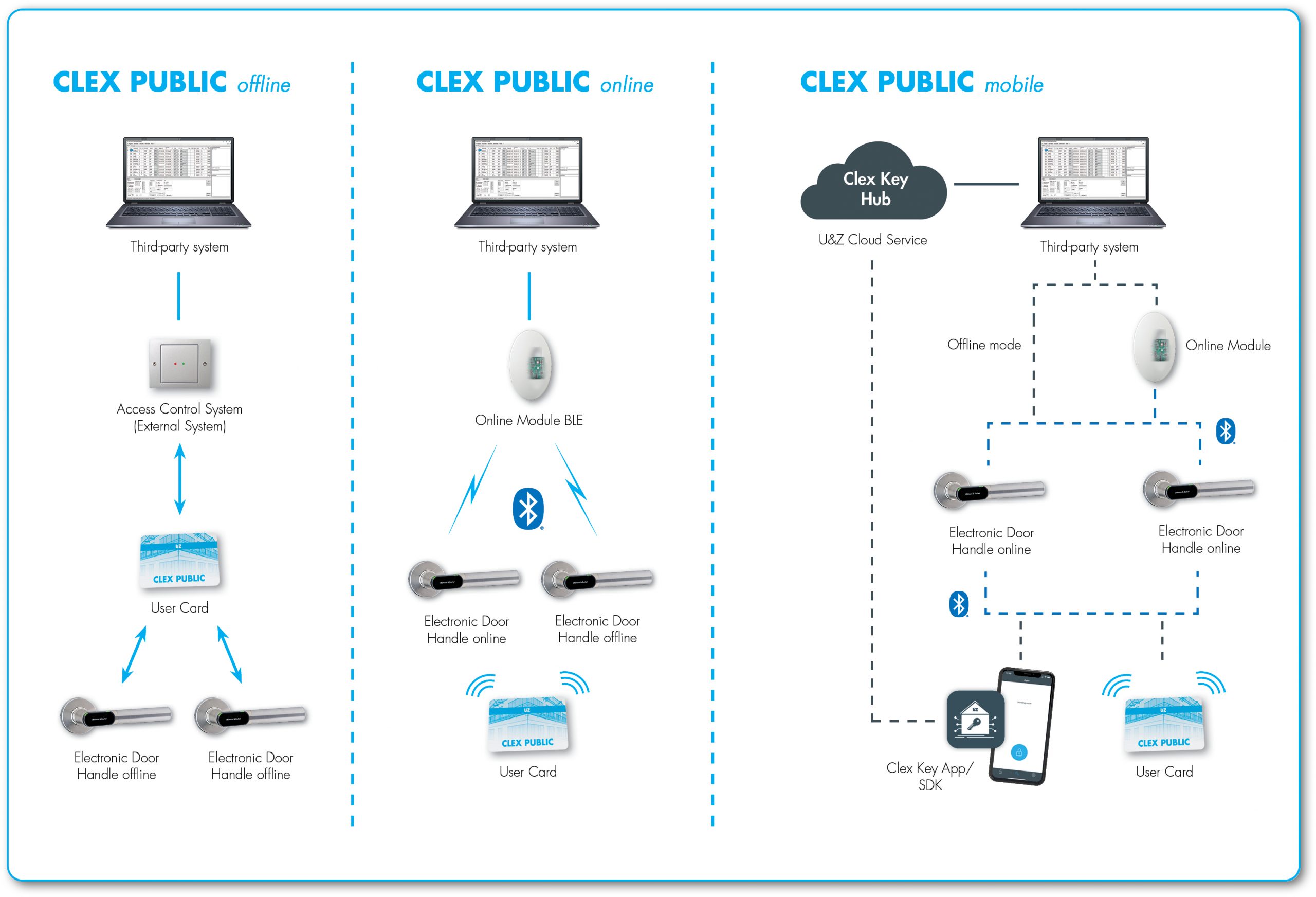

Clex public Solutions

The products can be flexibly configured according to the individual requirements of the partner, which makes it possible to offer customized solutions. Clex public provides the partner with a custom firmware for developing their own firmware.

Clex public offline

Clex public offline is an off the shelf firmware adjustable by the partner in the most flexible way. A default selection of importance within the parameters is provided for commercial and multi dwelling units (MDU). Customer requirements and further customization are implemented by choosing from the extensive Parameter options to allow customers to create personalized products efficiently.

Clex public online

Clex public online provides the possibility to cost-effectively integrate doors in access control systems. Clex public online defines an interface for a connection between access control systems and U&Z locking units.

Clex public mobile

The mobile integration development kit offers the opportunity to integrate electronic locking units via Bluetooth® Low Energy into 3rd party systems.

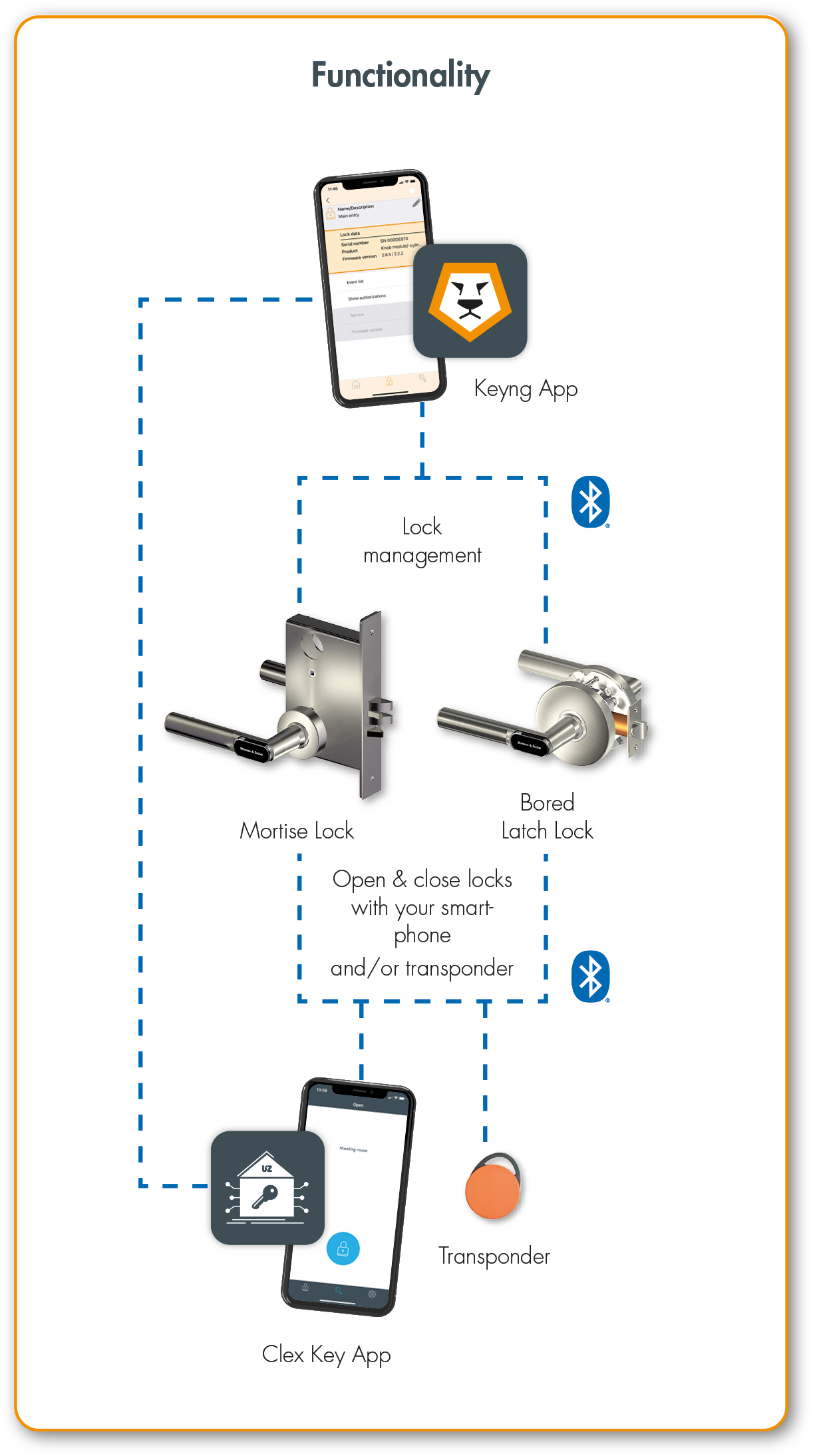

Clex private mobile Solution

The system Clex private mobile is particularly suitable for small to medium-sized buildings such as doctors‘ clinics, law firms, small offices or private homes.

With Clex private mobile, users can manage their electronic locking units on the go, as well as open and close them.

Therefore Uhlmann & Zacher offers two apps: The Keyng app and the Clex Key app. With the Keyng app, the locking system can be managed easily. In addition, the Clex Key App can be used to open and close the electronic locking units with a smartphone and/or transponder. In the process, the smartphone communicates with the locking units via the modern Bluetooth® Low Energy technology.

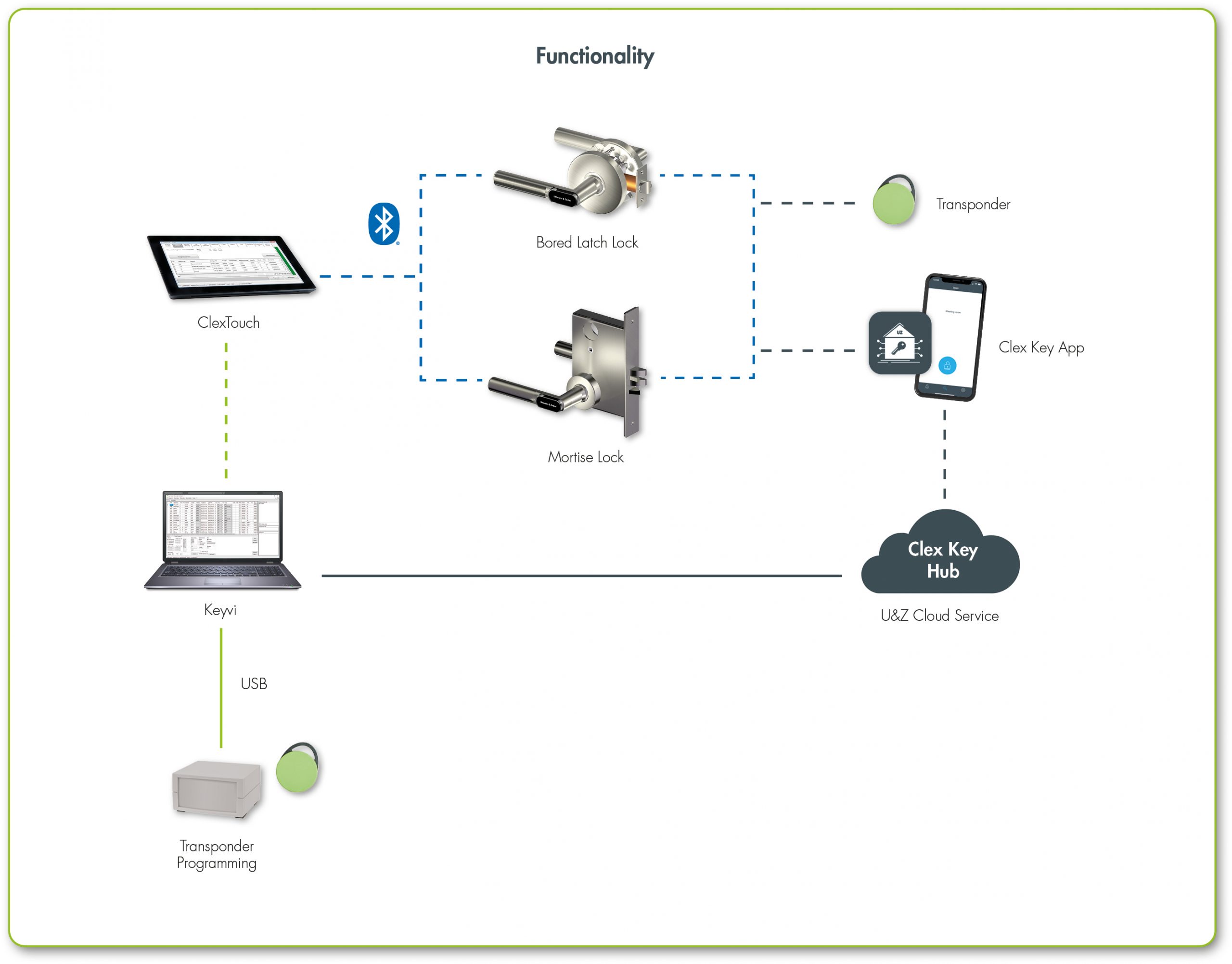

Clex prime mobile Solution

The Clex prime locking system is an electronic locking system to secure a wide variety of object types. With the new extension Clex prime mobile users can now also open and close their electronic locking units (electronic door handles, electronic lock cylinders) via mobile devices.

Keyvi managment software

The Keyvi management software enables the electronic locking system to be managed centrally and conveniently from a PC or laptop. Even complex locking programs can be easily created, monitored and maintained with the software.

Clex Key app

Thanks to the Clex Key app access rights can be flexibly managed on the smartphone. The smartphone is used as a door opener and can be used as replacement or supplement to traditional RFID transponders. Thereby the smartphone does not have to be connected to the internet at the time of opening.

Clex Key Hub

The Clex Key Hub enables the allocation of authorizations an is used as an interface between the Keyvi management software and the Clex Key app. The authorization data are saved in a security database. The Clex Key app receives regular updates from the Clex Key Hub on the status of the mobile key‘s permissions.

Downloads

Clex public

Clex private

Clex prime
